עברית Studio Pilot

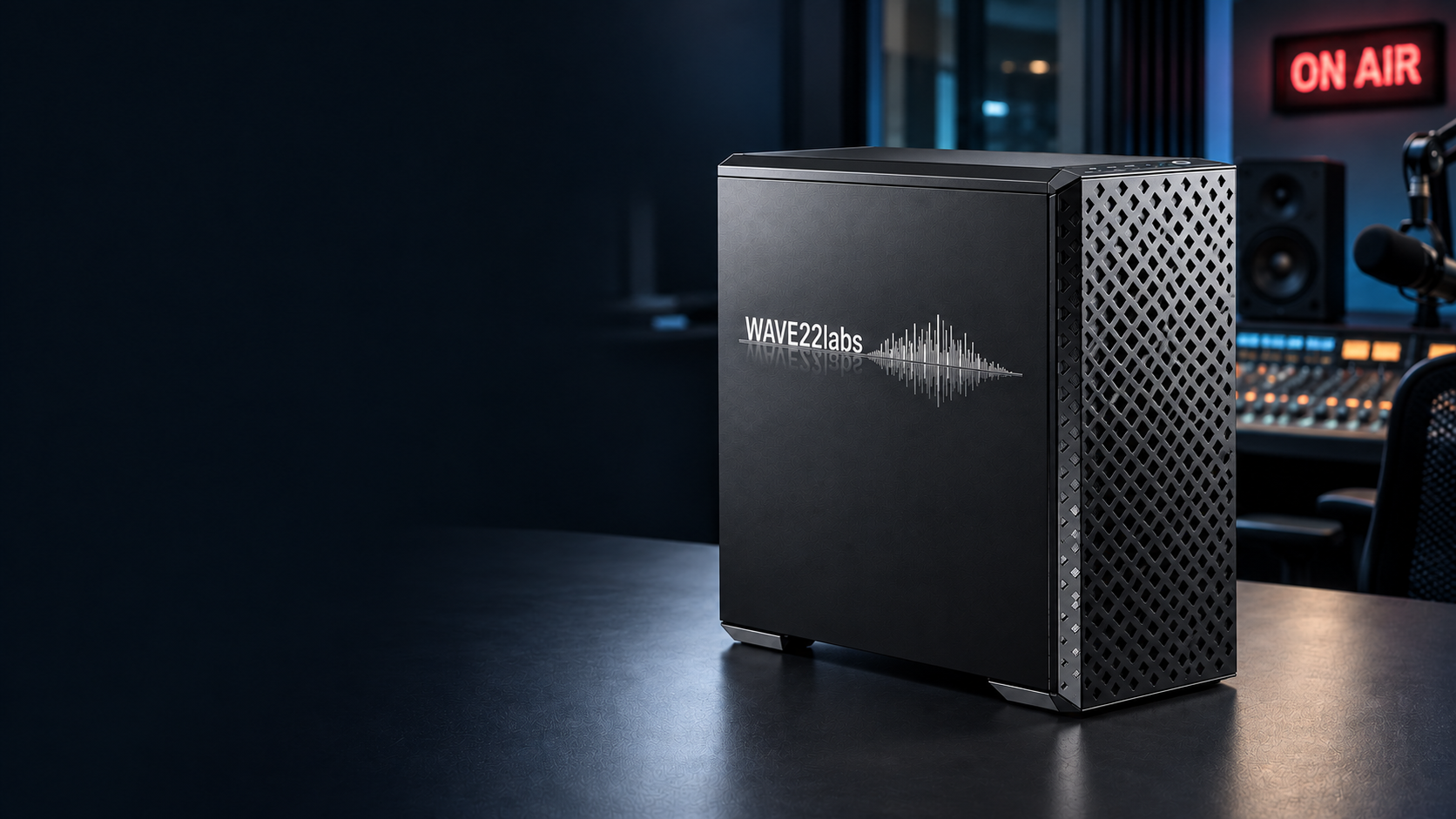

Wave22 Labs graphite captioning appliance with silver engraving, in a broadcast studio.

LIVE LANGUAGE ACCESS

Real-Time Hebrew
Captions. Inside
Your Studio.

daberelive

Live Hebrew captions for broadcasts, conferences and productions. Processed locally, in your studio.

Explore the Solution

Low latency LOW WER LOCAL PROCESSING

TV STUDIOSNEWS & CURRENT AFFAIRSSPORTSGOVERNMENTCONFERENCESPRODUCTIONS

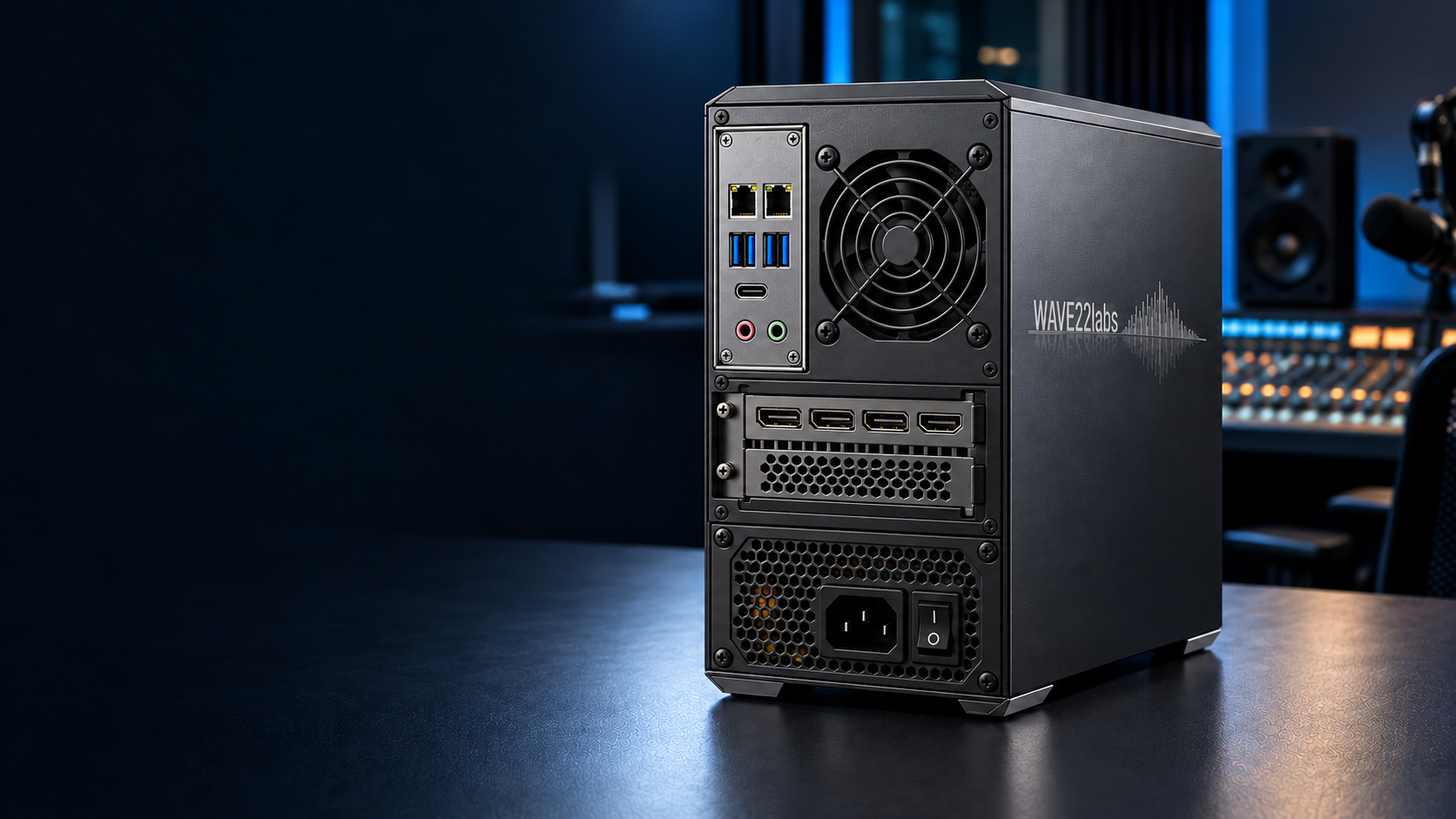

Rear design concept with a grouped motherboard I/O shield, two Ethernet ports, a separate graphics-card bracket, exhaust ventilation and power-supply inlet.

THE SOLUTION / STUDIO CONNECTIONS

Built around
your studio.

Local Hebrew captioning. A dedicated GPU.
Connections that belong in your studio.

Custom-built around your requirements.
We design and supply systems in any configuration, tailored to your needs and fully adapted to your existing systems and workflow.

LAN 01LAN 02

Hover or tap to explore the connections.

See the audio workflow

Hardware layout concept. Board, GPU, power supply and thermal fit remain to be validated. Display outputs are not broadcast video inputs.

WAVE22 LABS / daberelive

Technical specifications

Standalone offline Hebrew captioning appliance

SYSTEM DATA SHEETonly local STTCONTINUOUS OPERATION / 24–7

SIGNAL FLOW / only local STT

From live audio to Hebrew captions.

One local workflow: audio in, Hebrew captions out. Designed for continuous operation without an internet or cloud connection.

Illustrative workflow. Animation timing does not represent measured latency.

  1. Audio input

    Microphones send live audio to the studio mixer.

  2. Audio mix

    The mixer provides one audio feed to the local system.

  3. Local STT

    Speech is processed and the Hebrew text is refined locally.

  4. Caption engine

    Text is arranged into readable caption lines.

  5. Live output

    Hebrew captions appear on the production screen or overlay.

Scroll horizontally to view the full specification.

Performance, system architecture and studio interfaces
ParameterSpecification
01 — Recognition & performance
Caption latency0.5–2.5 s
Word error rate (WER)1.4–5%
Operating selectorSpeed priority / quality priority
Language & layoutHebrew / right-to-left captions
02 — System & reliability
System typeStandalone physical appliance
ProcessingOn-device Hebrew STT
Operating duty24/7
Internet / cloudNot required for live captioning
03 — Input / output & control
Audio inputMixer / compatible audio interface
Caption outputBrowser overlay / local viewer URL
Production integrationOBS Browser Source demo workflow
Operator controlLocal session / on-air caption control
04 — Technology & installation notes
Operating principleLive audio → Hebrew text → caption overlay
ValidationStudio-specific performance & integration checks
Integration scopeExisting video chain / separate broadcast assessment

Performance: Latency and WER depend on the speed–quality setting and source audio. The selector balances response time against recognition quality; lower WER is better.

Operation: Designed for continuous 24/7 use. Live captioning runs offline, independently of internet disruptions and cloud outages.

Installation: Validate performance, audio routing, hardware and recovery with studio material. Other production hosts, SDI, genlock and embedded closed captions require a separate assessment.

USE CASES / LIVE LANGUAGE ACCESS

Every setting.
Every word.

From the newsroom to the main stage.
Live Hebrew captions, wherever speech matters.

Wave22 Labs appliance with the engraved company wordmark.

WAVE22 LABS

Live language access.
A more inclusive
world.

daberelive

We’re developing local Hebrew captioning for the people who bring live broadcasts and events to their audiences.

Our focus is practical: clear captions, a simple audio workflow and a product shaped by studio pilots.
